Friday, 29 July 2016

Waste oil burner. This time with videos.

Last weekend I fired up the oil burner again. This time I prepared a reasonable amount of fuel for pre-heating. I even tried to light it without accelerants. Unfortunately everything was wet and the kerosene was so close to hand. So I did cheat a little.
Here I am, with the pile of wood just starting things happening.
Maybe a little quick. But I didn't quite kill it.
Starting to burn down nicely.
Starting to get a bit excited with a little oil and air added.
I managed to turn the oil down too far without realizing it as the fire got a little too smokey. It was taking off but it didn't feel quite right so I fiddle with the oil and lo and behold. It starts to take off.
Lets see if I can make stuff hot with it.
A little hard to see here, but the bar certainly did get forging hot.
Lets see if we can make something a little more substantial properly hot.

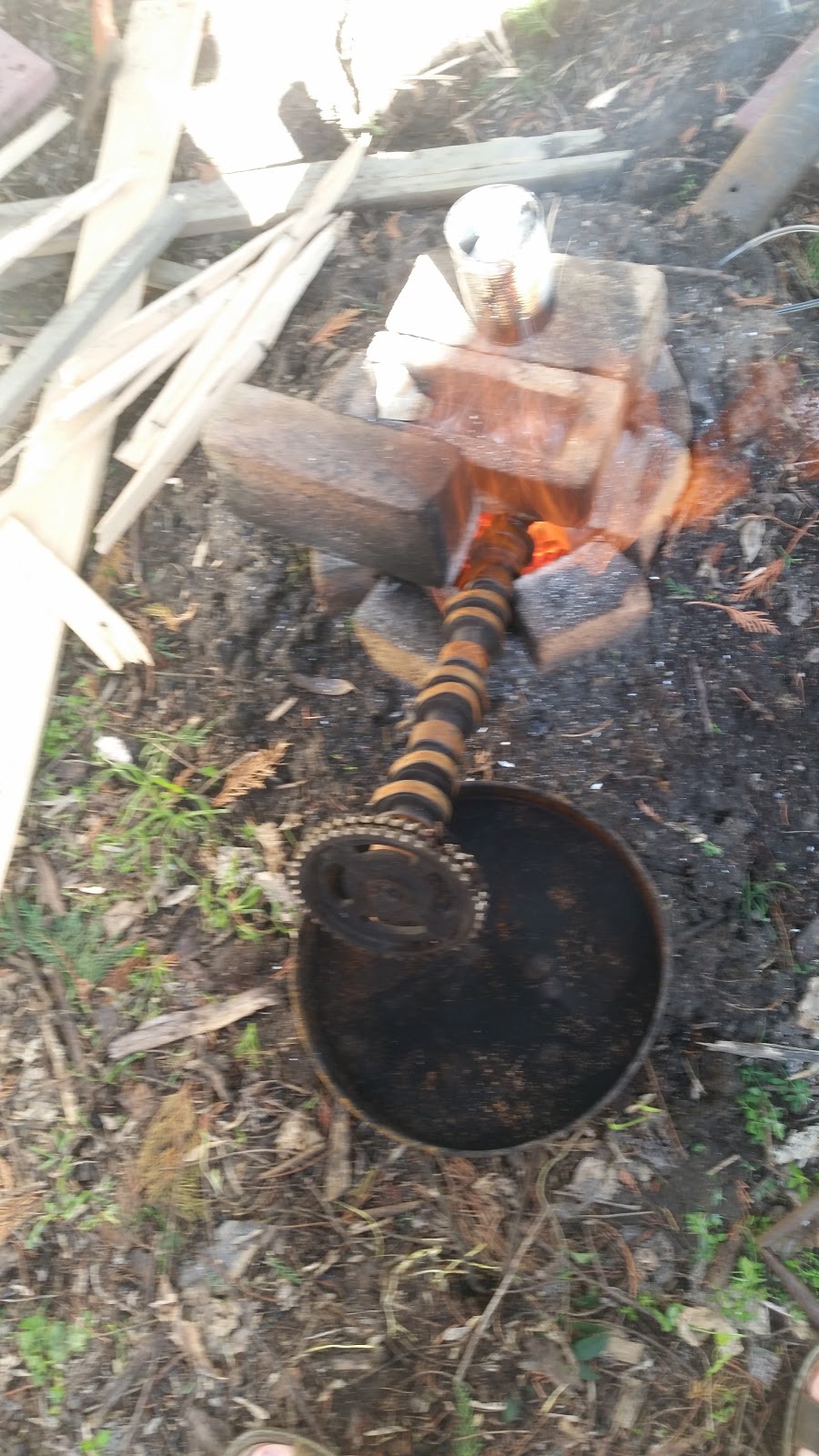

The end of the camshaft needed a little support to keep it in the hottest zone.
While it probably would've looked much better at night it did get hot enough to move some metal around a little. I think the white coating is fine ash from the wood getting blown around by the blast from the burner and coating everything.
Just before I shut it down.
And here we are cooling down. When I came back an hour or 2 later there was still a fair bit of heat radiating out from the bricks. They were definately hotter than you would want to touch.

Here is a quick shot of me pre-heating the fire pit before anything got too exciting.
Here we are with the burner running and adjusting the air/oil mix a little.

I'm hoping to get some more shots of interesting stuff getting done this weekend so keep an eye out for those next week.


Tuesday, 26 July 2016

It can be better to pay first

Paying for a good tool or a part can be a bit offputting as the initial expense seems to be much higher. However cheaping out and getting something that might not work properly will most likely be more expensive in the long run.
I have had that idea highlighted for me while I was setting up a KVM switch so that I can run both the beaglebone (Mill) and the 386 (Lathe) through the same monitor.
These are the parts I tried to use. I got the keypad, kvm and an extra VGA cable from The Junktion for $5. All of them seem to work and are in good condition and would probably work in a more normal situation.

This is the KVM switch. It's better than the last ones I had because it gets all of it's power from the computers. However it's a bit different in that it needs a set of keys to be pressed on the keyboard to change the controlling computer. I don't use scroll lock much, particularly on these computers so that won't be a problem.

The stack of adapters. The fan I had wasn't working so this was going to be fine for a test. I do have an HDMI to VGA adapter somewhere that will let me have a fan and get video out; but I can't find it at the moment so I'll make do.

And here we have the rat's nest. I don't do a lot of cable management because I am changing things so often that having a strict management system would get more in the way then a mess like this. Regarding noise and crosstalk between the cables, anything back here with a signal is shielded and the only thing with significant power other than the mains cables is the drive to the stepper motors which is reasonably heavily shielded. So I don't think noise will be a problem and I certainly haven't had any issues yet.

With everything plugged in I powered it all on and... It... didn't work. It would display the screen from the 386 but I could not change it to display from the beaglebone. I think what has happenend is the KVM switch is expecting to be plugged into PS/2 ports (That's why it has them I guess) but I am plugging it through an adapter into an old style keyboard connector and that's it. No mice or keyboard from the Beaglebone.

I think this is causing it to run out of power and just not work properly.

To fix this I am doing what I should have done in the first place and buying a cheapy from ebay that is completely passive. From the picture of it's guts I saw it is very basic which will be perfect for this as then there is less chance it will not work.

So sometimes it pays to just buy the right thing in the first place. But for a hobby, while it can be frustrating and demoralizing it usually isn't too bad. In a business situation however it can cause major problems.


Sunday, 24 July 2016

Make sure you fix your mistakes

The other week I was putting a sight glass back in a tank when I managed to overtighten one of the bolts and snap it off. I didn't really need to tighten up those bolts that much so it really shouldn't have happened. But accidents happen.
You can see what's left of the bolt snapped off in the bottom right of the fitting.

We came back to this problem over the weekend and fixed it. But fist I had to use a hammer.
Not a particularly heavy one, but big enough to make me nervous about breaking the removal tool which would have been next level bad.
Thankfully this part went well. Once the tool got in far enough to get a good bite it spun the bolt and the whole shebang came out. Then I had to get the bolt off the end of the removal tool. Awkward, but much less stressful than getting the bolt out.
And here is everything buttoned up and no longer holding up progress.

I had a bit of a play with the oil burner as well so keep an eye out for updates on that through the week.


Thursday, 21 July 2016

You have to maintain a jacket?!

I had to re-waterproof my rain jacket at the end of last year. (More detail on the process here and here). This style of jacket needs to have the waterproofing re-applied about every 6 months or when the jacket dries out too much again.

So it is a bit overdue for getting this re-done so I tried to get through it after work last night.

First though I had to re-melt the beeswax waterproofing. To do that I had to move all of the stuff that's on top of the Barbeque because I've been using it as a workbench.
That's better.
Last time I did this I felt the jacket was still a little too waxy after melting it in so that means I needed to add some more drying agents. Probably the best thing to add would be some more gum turpentine but I don't have any of that so I added a bit of linseed oil.

All of a sudden I looked back in the melting pot and a heap of wax had welled up from the bottom and was cooling again on top of everything. It did look a bit cooler in person.

Then things got a bit too exciting. Stirring to try and speed up the melting process and a little splashed over the side and managed to set the whole lot on fire. Not that surprising really considering everything in that mix is classified as flammable. Even the wax burns once it's got a bit of heat in it.

Now not as exciting. Much better.
The fire seemed to make the mixture somewhat blacker than before so it will be interesting to see, once it cools if the whole batch has been darkened.
Wipe on.
Melt in. Repeat for the next section of the jacket.

I only got a bit of the jacket finished before it got too late and I had to go to bed. But what I have done feels and looks much better and more waterproof again. I'm just hoping I will get this finished before I need to stay dry again.

It was a bit of a pain doing this because it was fairly cold and I was essentially outside. Next time hopefully I will be doing this somewhere it's a bit warmer so the waterproofing will melt into the jacket easier.


Sunday, 17 July 2016

Sometimes there's not too much reason

Well, more like excuses.

I spent the afternoon yesterday playing with my remaining air compressors. I have now got them set up so the working compressor head which is only rated at about 150W pumps into about 60L of storage. Once I get the un-seized compressor head wired up and working I will also be able to pump into that 60L of storage with a 2.5HP compressor as well.

This is where I started after picking up the parts I thought I would need for setting this all up. The little blue GMC compressor works and I have been using it for running the oil burners and such that I have been experimenting with. The lighter blue compressor is one of the ones I got from the Junktion and doesn't currently work. It has now on/off regulator, no plug and the starting capacitor is not connected. All I am using this one for at the moment is an extra reciever so the little compressor doesn't need to cycle as often.

Hmmm, looks like I guessed the wrong size. Ahh well. Trip 2 of the day to the hardware store.
Did I get the right part? No... Bugger, third time lucky?
Finally. It felt like a bit of an ordeal just trying to get these adapters. Perhaps I need to start planning these things out a little more.
But this makes it all worth while. I now have a proper oil filled gauge and it is nice to read.
One trick with these gauges is they have an equalzing port on the top of them to ensure they are accurate. However these are blocked off during transport so the oil doesn't run out and get lost. These need to be opened up before the gauge can be considered accurate. This one you have to cut the nipple off the top of the plug in the port.
Here we are all working now. I did a leak test of the whole system and it seems to hold pressure plenty reasonably so overall I am quite happy with this arrangement.


Tuesday, 12 July 2016

Sometimes it doesn't work out

Over the weekend I tried to save some money. The car we recently bought for my lovely girlfriend needed new tires. We knew that when we bought it though so no shocks there. What I did realize though is that I have a car with tires that still have a little tread on them on a car in a paddock that doesn't need tires that are legal on the road so I thought I'd try and put those wheels on the Mazda.
This is one of the stock wheels on the Mazda, They are a 165/70R13. So they are 165mm wide at the tread and have sidewalls that are 70% of that width. The tires on the Pulsar are a 195/50R15 so 195mm wide with a sidewall 50% of that width. That means that they are lower profile and are less likely to roll over themselves during a corner; but we aren't going to be doing that sort of cornering in this car.

Being that they are a bit wider I wasn't sure if they would fit. But in the name of not wasting a set of tires with a decent bit of tread left on them I decided to give it a go anyway.

Here they are in situ. Let's do this the easy way.
A rattle gun. With proper impact bits even. I learned my lesson after wrecking a 1/2" drive to 1/4" drive adapter with this thing. Get the proper impact bits. And so far I haven't wanted to use this driver on a bolt other than the sizes in this set so for most cases a basic set like this is plenty ample.

I did however make the mistake of undoing all of the wheels in one go. Then trying to take them off one at a time. If I was doing this on a hoist that wouldn't be a problem. But if the car is sitting on it's wheels then as you jack it it will move a surprising amount and you want all of the other wheels to be secure as it's shifting to stop it falling over.

This was the only jack I had with me. It's just the one that came with my Rodeo ute and was doing fine. Until it wasn't. All of a sudden it just wouldn't move either way. I'm not sure what happened but it worked fine the next day so it might've just gotten cold, or just needed a bit of rattling around in the toolbox on the back of the ute.
Luckily there have been a couple of paddock bashers through this paddock and we have usually taken the jacks out. Either because we needed to use them, or we wanted one less loose thing in the car with us. I managed to find this one down near where some of these cars have been kept in the past. It even had a driver on it so I could put a socket on there and jack up the car with the rattle gun. Very easy way of doing it.

So this is why they say to do this on level ground? That black dot is the last tire. It didn't fall over when I dropped it after taking it off. Then I couldn't kick it over to stop it so I just let it go. It finished not far from this picture so I just picked it up on my way out.

Here we are. That's a pretty tight fit. Overall these wheels have a slightly larger diameter. But within what is allowed by law so it's only a case of will they hit anything?
Moment of truth here...
And a no go. Unfortunately we don't just drive in a straight line so these wheels didn't fit.

We had a new set put on today for about $400. Not going to take food off the table, but it would've been nice to be able to put that off for a few weeks even.

But that's something to remember. As much as I do eventually get just about everything working how I want it. Sometimes it just isn't going to happen and the time and effort you have invested could probably have been better served elsewhere. But this was only a bit of fun and the results either way was very much more about if I could do it, rather than it being critical.


Monday, 11 July 2016

Triple Check before the shops close

These ended up stinging a little more than I'd expected.
My 2006 Holden Rodeo has been shifting poorly for a little while. Initially I thought it may just be wear, but I wouldn't expect a gearbox to be gone with only 180,000km on the clock. So I decided to change the oil in there and see if that helped.

Short version? It did.

Long version?
I checked in the owners manual what oil I should put in and I was pretty confident that I was looking at the right gearbox as some of them in the book have different specifications. By the time I'd drained the oil I was starting to get a nagging doubt so I checked the builders plate and compared that to the number in the book.

Guess what? I'd gotten the wrong oil. The gearbox I thought it was used the same oil as the engine which is due to be changed soon anyway. But the gearbox it actually is needs SAE 75W-90 GL3. Definitely not engine oil. This was about 1625 on a Sunday afternoon so I took the other car around to all of the parts stores in town and by the time I got to each of then they were shut. One shutting just a few minutes before I get there even.
So what to do? Where else can I get a bit of a specialty oil? Servos that cater to trucks and have a bit more range than just fuel and chips. I managed to find the 3L I needed at the servo just out of town for about $80 total. So pretty expensive for something that I thought I already had.

The astute among you will note that the spec. calls for GL3 and the picture shows GL5 oil. When I found the oil I had to pull out my phone and do a quick search to try and find if they are compatible. I ended up finding the answer on a scooter forum which indicated that GL5 oil will be fine for a GL3 spec.

After sorting all that out I made it back home to re-fill the gearbox. I ended up putting in between half a 3/4 of a liter more oil in than came out so that may have had something to do with the bad shifting. Any by guesswork and feel I finished as the sun had pretty much gone down.

Then I went for a drive. While not being silky smooth by any means. The gearbox now shifts reliably into 2nd and feels like you'd expect the gearbox on a ute to feel.

I think I've talked too long by now so I'll finish here. But remember, triple check specs before the shops close.


Thursday, 7 July 2016

A Little more practice needed

So tonight I decided to have a little play with the Lathe. I probably should've gone to bed early for work tomorrow. but it was calling me.
You may remember that I am setting up a fixture on my mill to experiment with parts drawn in Fusion 360 then exported through to it. Unfortunately as you can see in the above picture the hold down bolts I have are a little too long. To fix this I could cut them down with the hacksaw. But I thought it would be a lot cooler and good experience to use the lathe.
So I set everything up as near as I could figure to correct.
I put a little oil on the part. I was planning to add a drop halfway through, but the spindle doesn't run with the face shield up so I had to put a drop on then just let it go. Probably not too big of a concern with this part at it's fairly small and although it will produce some heat it shouldn't get too bad.
The result of the first pass. The spindle started to load up a little then the tool seemed to jump over the little nipple that was left without actually cutting through it. So perhaps the tool is too high? Simple solution, lower it then.
Hmmm. Possibly too low. This picture looks much worse than it did in real life.
Here we go. I did add another drop of oil, but it had pretty much been thrown off by the time the tool came in, I probably won't worry in the future.
It worked. Kinda. It's a bit difficult to see in the pictures. But the surface finish on the part in the chuck isn't great and while it did cut through it wasn't particularly happy about it.

I thought it must be too low now so I moved everything around again and had another crack at this. Just for practice now.
Unfortunately this attempt was an unmitigated disaster. The tool got caught in the threads and was deflected off to the side. Then it started to cut. Thankfully I stopped the machine before anything snapped.
The Solution? Turned out not but it was a fun thing to try. I set up another tool opposite the parting tool. This is more or less how the machine was when I received it. I wish now that I'd played around more as it was. But hindsight is 20/20 and I knew even less then than I do now. However I was able to turn this to a fairly good surface finish quite easily.
The feed was set at about 10mm/min, the depth of cut was about what looked pretty good and the spindle was set at 1/4 of the way between 200 and 2000 on the dial for it. Not sure how accurate that is though.

So now that we have a nice flat surface that isn't going to deflect the tool lets try again.
This was the result. The tool just rubbed and pushed the workpiece around. It actually crushed some of the threads in the chuck so the steppers at least have a bit of go to them even if the spindle is a bit weak.

At this point I decided to call it a night and had a quick look at the turning insert I was using.
Thankfully no visible damage as I expected. However it is always good to double check.

I will probably go back to playing with the wax and delrin(?) blanks I have for a little while, at least until I get a better feel for how each of the tools work and getting them set properly. The good news there is that means I will probably get to the mill sooner again. I will rig up a fan that actually works to send some air over the stepper drivers as they do get quite hot although I think they are still just within spec for passive cooling. Then once that's done, I have worked out a method for driving the spindle so it will be full speed ahead for making some chips over there too.
